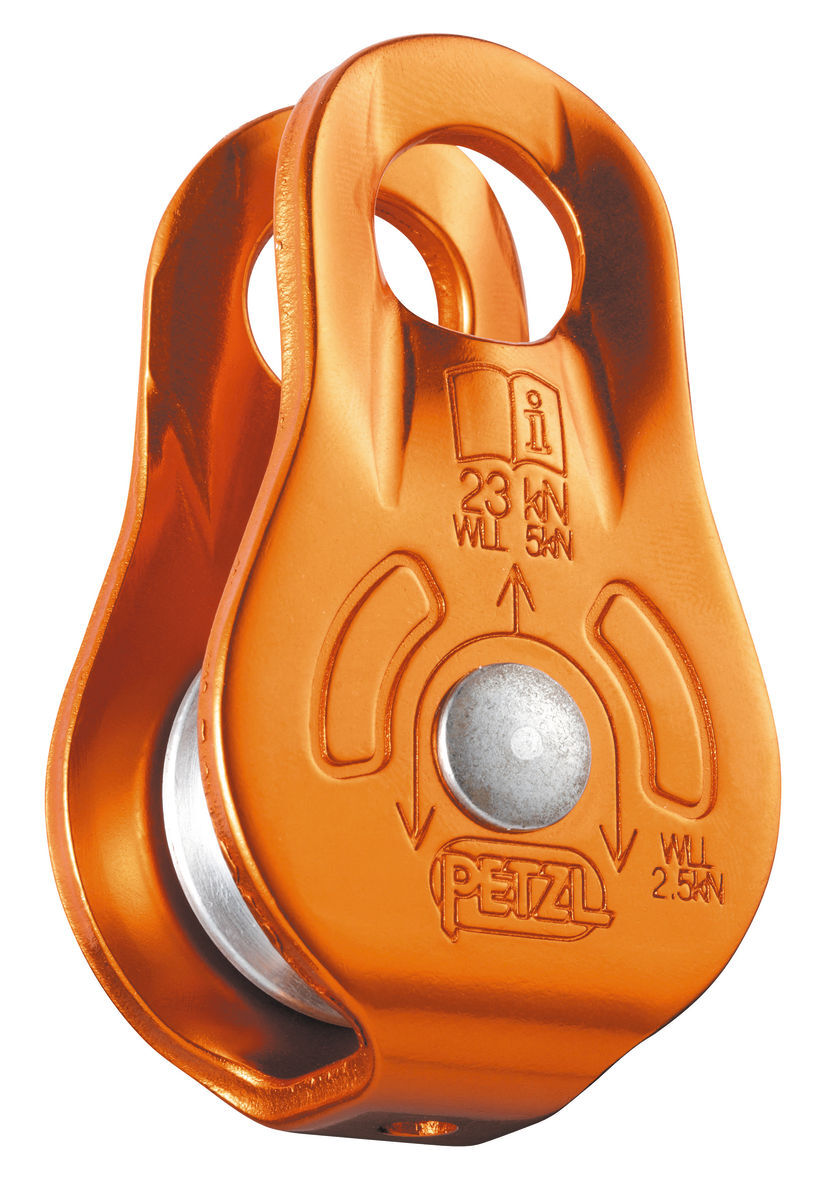

Pulley with fixed side plates
The FIXE pulley is lightweight, compact, and quick to install on the rope. It offers a good balance between weight and strength.
- Lightweight, compact pulley
- Designed for hauling systems and deviations
- Fixed side plates allow quick installation and coupling with a rope clamp
- Sheave mounted on self-lubricating bushings for efficiency
- Material(s): aluminium side plates, aluminium sheave
- Certification(s): CE EN 12278, UIAA
- Weight: 90g
- Min. rope diameter: 7 mm
- Max. rope diameter: 13 mm
- Sheave type: Self-lubricating bushings
- Sheave diameter: 21 mm
- Efficiency: 71 %
- Working load: on one rope strand: 2.5 kN
- Working load: 5 kN
- Breaking strength: 23 kN
